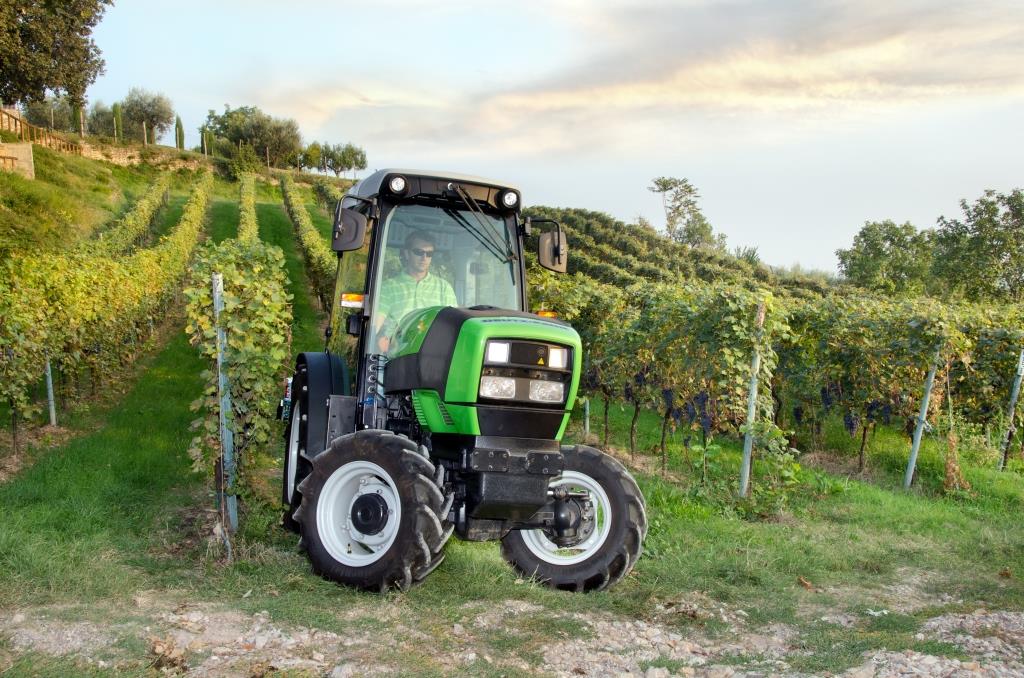

Agroplus F Series

The Agroplus F series offers counteless option combinations and high tech solutions. Three mounting areas, efficient turbo diesel engines, syncroshift and powershift transmission and a comprehensive range of features.

DEUTZ-FAHR has been one of Europe’s leading suppliers of specialist tractors for decades.

With the uniqure Stop & Go manoeuvring system and a whole host of features not even found on many big tractors, the Agroplus F is ideal for fruit growers and vineyards, municipal authorities and farms looking for a compact and powerful tractor.

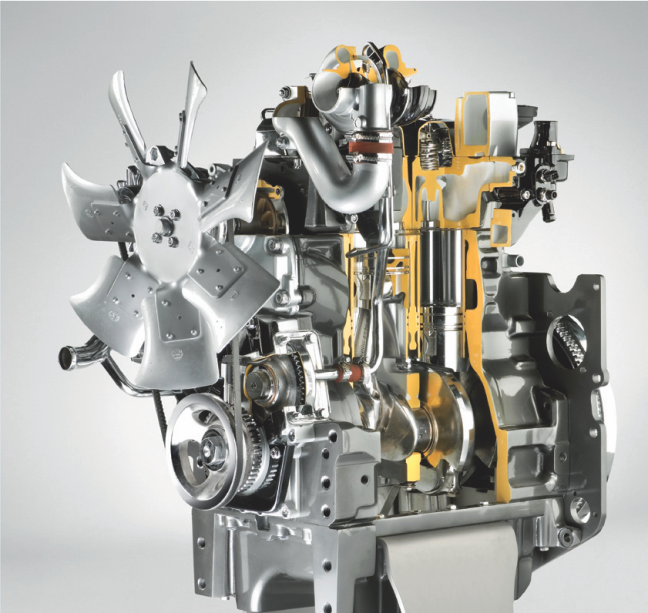

Engine

https://www.deutztractors.co.nz/products/tractors/specialist-series/agroplus-f-series#section-get-price

Efficient as standard

The technical features of the liquid cooled  Agroplus F engines are unique in this class. The innovative electronic engine control (EMC) ensures that the engine speed, which the driver selects simply and conveniently at the touch of a button, is always maintained. Furthermore, the engine always runs in the optimum power and torque range with minimum fuel consumption.

The advantages: constant power over a wide speed range, high degree of efficiency, low fuel consumption and therefore low operating costs. Operation is also very convenient.

High degree of efficiency

Each cylinder has its own single injection pump directly driven by the camshaft. A High injection pressure of 1,400 bar means that the fuel is effectively atomized by the 5-hole injection nozzles for optimum efficiency.  This means  a very high degree of operational efficiency with low consumption.

Constant speed

Together with the electronic manual throttle  a selected  speed  can be pro grammed and precisely maintained at the  touch of a  button. The electronic engine control ensures that the engine runs at the required speed, even when load conditions change  during operation. The benefit – constant  PTO and travel speed – even under varying load conditions.

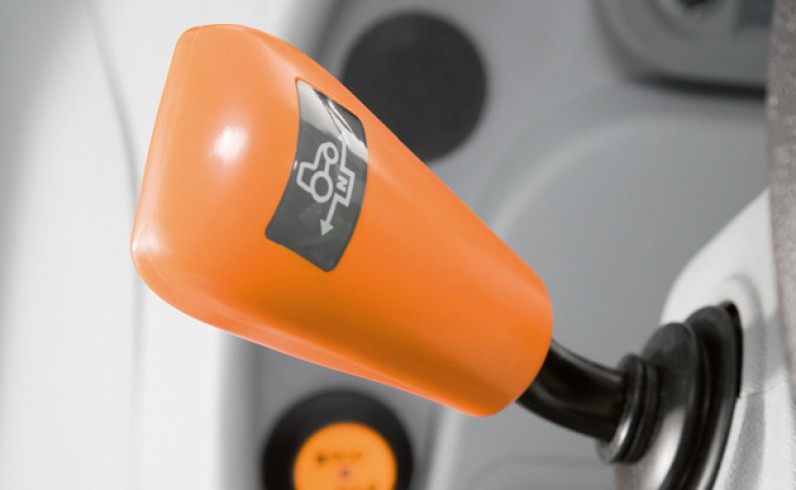

Transmission

The Agroplus F tractors  come with a choice of four transmissions.  For the basic  versions with synchronized F / R shifting the choice is between the easy- to-shift 30 / 15 ECO-Speed transmission or the  comfortable three  speed  Pow- ershift   ECO-Speed transmission with 45/45 speeds. For the GS versions with synchronized F/R shifting, the choice is between the 30 / 15  ECO-Speed trans- mission or  the  Powershift ECO-Speed transmission with  45 / 45 speeds, in both cases with Stop & Go function for shifting quickly between forward and reverse. To enable you to change direction quickly, a Powershuttle lever is provided below the steering wheel which actuates two  oil-immersed multi-plate clutches without having to press the clutch. This system is also provided as standard with a comfort clutch – all speeds can be shifted at the press  of a button on the  shifting lever without having to press  the  pedal. All alternatives  come with creeper  and mini-creeper speeds as standard.

45 finely graduated speeds

The right  speed  for every application. From 170 meters per hour in extreme creeper speed for specialist use to economic
40 km / h for travel on roads. With a total of 45 forward and reverse speeds, the shifting comfort of the Powershift transmission could hardly be bettered.  The 3 powershift stages are activated simply, precisely and quickly at  the  press  of a  button.
The gain in productivity is enormous.  The speeds are  graduated  extremely precisely for optimum convenience – the Powershift transmission has 10 speeds  just in the main working range from 4 to 12 km / h.

Shifting comfortably

In  the  GS Shuttle  versions,  up to  15 speeds can be shifted thanks to the comfort clutch fitted as standard  without having to press the clutch pedal. It could hardly be more convenient.

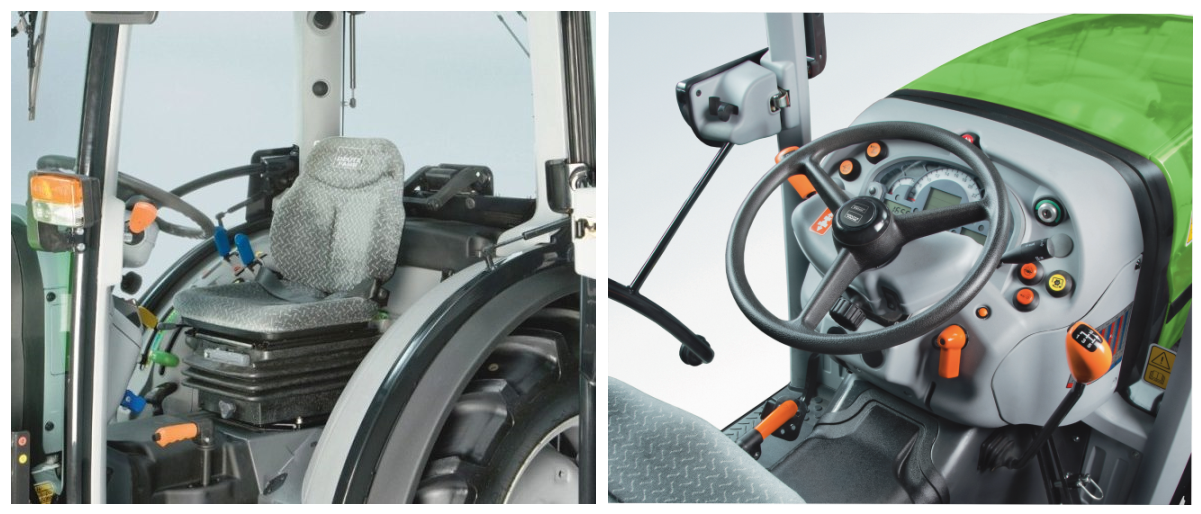

Cabin

Space and comfort

The spacious Agroplus F comfort cab  has  lots  of space  for long working hours.  The innovative cab design, without a B-strut, favours easy access through the wide opening, fully glazed doors. The narrow cab struts and large glazed areas ensure an optimum view of all mounting areas  – the  basis  for pleasant,  stress-free work and perfect results.   Maximum freedom  of movement  and a practical  ergonomic  design are  also features of this modern cab. The comfort cab is also very well insulated against engine and operating noises. The silent block mountings effectively absorb interfering vibrations. This technology is also used in the ROPS version.

Everything at hand and in sight

In the Agroplus F the driver has everything at his fingertips. All the important  operating  controls  are  easily accessible.

Hydraulic System

Maximum hydraulic capacity

With a delivery capacity of up to 58 liters a minute just for the working hydraulics and the additional remote valves, the hydraulic system of the Agroplus F is fit for every purpose. The maximum of 5 double actilng additional remote valves allow all at tached implements to be operated easily.

Flow control and free flow oil return are of course standard. That ensures the optimal use  of center-mounted or front-mounted implements and boosts productivity.

Electric joystick

The fourth and fifth double-acting remote valves are conveniently operated using the  newly developed electromagnetic joystick integrated  in the  multifunction console. This allows several implements such as stump clearing tools  and leaf cutters to be controlled perfectly. It’s hard to see how the effective control of connected hydraulic implements could be any easier.
